No Camera, LED/LCD Digital Display of Auto Blind Spot Monitoring

    The distances of the obstacle in the front and back of the vehicle can be displayed on the color LED panel. The distances can be in detail figures, or be in segment bar. It consists of one color LED panel, one controller, one buzzer, 3~6 distance sensor (installing 1~2 in the front and 2~4 in the back).

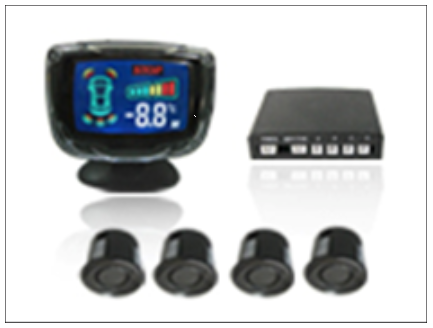

Typical Key Features for

LCD Display no Camera

1.LCD display
2.Three
background alarm colors
3.Direction indicator
4.Voice indicator

5. insert-in sensors optional
6. "DangDang" alarm sound
7.  2 front sensors, 4 rear sensors

AMLE641

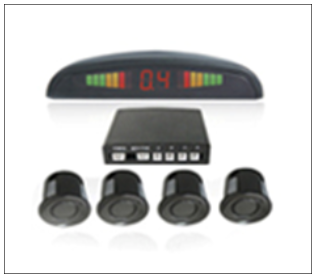

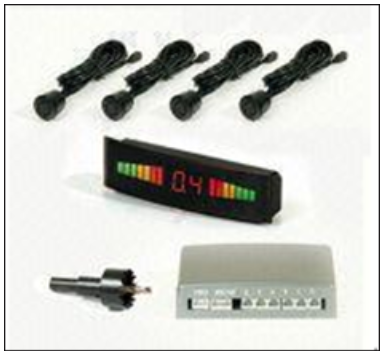

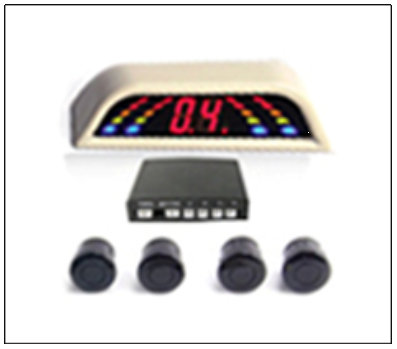

Typical Main features:

1.Digital distance display
2.BiBi
Bi alarm sound
3.Insert-in & stick-on sensors for option
4.Direction indicator of left and right
5.Three-color LED display

AMLE642

AMBZ-441 and AMBZ-442 Features

* Special for truck and container lorry

* User-friendly sensor and connector

* With three-stage beeping mode

* Stick-on and insert-in sensor for optional

* Bi-Bi alarm sound

* 4 sensors

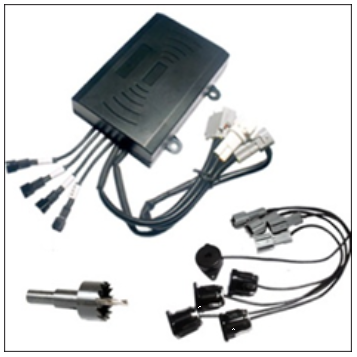

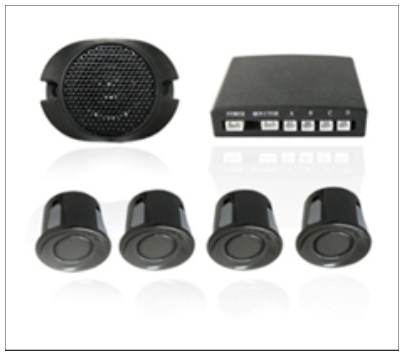

Buzzer AMB-441 and AMBZ-442, no Display Device for Economic Use

AMLC641

Auto Blind-Spot Monitoring     Video Display    LED/LCD Display      Bluetooth

Auto Blind-Spot Monitoring     Video Display    LED/LCD Display      Bluetooth

HOOH LTDHOOH LTD., SHENZHEN

Quality Product, Quality Service

Band

Obstacle Distance

Sector

Alarm sound

Distance Display

Number Color

 Segment color

1

150250cm

Safe

Nil



Red

Green

2

100~150cm

Safe

Bi……Bi…… Bi

1.0-1.5

Red

Green

3

5090cm

Warning

Bi…Bi… Bi

0.5-0.9

Red

Yellow

4

0~40cm

Danger

BiBiBiBiBi

0.0-0.4

Red

Red, Y. G.

Rated voltage:

12V24V

Operating range:

10V~16V DC



(15~27V)

Rated current:

20mA~150mA

Detecting distance:

0.22.5m

Ultrasonic frequency:

40KHz

Operating temperatr

-30~+70℃
